K51300.TR

Download Data Sheet

Additional information

GENERAL DETAILS

Installation: Trimless
Finishes aluminium: Black-Black | Black-White
Light direction: Fixed
Beam angle: 15° | 30° | 45°
Int/ext ip degree: IP20
Material: Aluminum
IK degree: IK 6
Utilization: Indoor
Warranty: 3 years

ELECTRICAL DETAILS

Lamp: LED
Power: 6 W | 10W | 20 W
Colour temperature: 2700K | 3000K | 4000K
Luminous flux: 385 Lm | 395 Lm | 635 Lm | 640 Lm | 660 Lm | 1250 Lm | 1280 Lm | 1470 Lm
Efficacy dimming: 55 Lm/W | 57 Lm/W | 58 Lm/W | 63 Lm/W | 64 Lm/W | 73 Lm/W
Dimable: 1.10v | DALI | No Dim | PHASE CUT | Push
Driver: Remote
Class protection: II
Colour rendering index: CRI>90
Voltage: 220-240 V
Frecuencia: 50-60 Hz
Current intensity: 600 mA | 700 mA
Life time: 35.000 h

GENERAL DIMENSIONS

Dimensions: 95×35 mm | 137×35 mm | 270×35 mm
Cut out: 100×70 mm | 143×70 mm | 275×70 mm
Height: h 56.5 mm

Configurator

Referencia	Dimensions	Finishes aluminium	Power	Colour temperature	Luminous flux	Efficacy dimming	Current intensity	Dimable	Beam angle	Cut out	Export PDF *
K51300.02.TR.WH-BK.15.ST.9.30.PU-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	Push	15°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.40.D1-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	1.10v	15°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.27-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	No Dim	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.27.D1-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	1.10v	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.27.PU-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	Push	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.30-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	No Dim	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.30.D1-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	1.10v	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.30.PU-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	Push	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.40-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	No Dim	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.40.PU-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	Push	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.27-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	No Dim	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.27.PU-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	Push	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.30-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	No Dim	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.30.D1-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	1.10v	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.30.PU-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	Push	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.40.D1-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	1.10v	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.40.PU-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	Push	45°	143×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.27-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	No Dim	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.27.D1-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	1.10v	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.27.PC-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	PHASE CUT	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.27.PU-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	Push	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.30.D1-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	1.10v	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.30.PC-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	PHASE CUT	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.30.PU-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	Push	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.40.D1-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	1.10v	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.40.PC-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	PHASE CUT	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.40.PU-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	Push	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.30-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	No Dim	30°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.27.D1-3	137×35 mm	Black-Black	10W	3000K	640 Lm	55 Lm/W	700 mA	1.10v	30°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.30-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	No Dim	30°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.30.D1-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	1.10v	30°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.30.PU-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	Push	30°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.40.D1-3	137×35 mm	Black-Black	10W	3000K	635 Lm	55 Lm/W	700 mA	1.10v	30°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.40-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	No Dim	30°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.40.PU-3	137×35 mm	Black-Black	10W	3000K	635 Lm	55 Lm/W	700 mA	Push	30°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.30.PU-3	137×35 mm	Black-Black	10W	3000K	640 Lm	55 Lm/W	700 mA	Push	45°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.40-3	137×35 mm	Black-Black	10W	3000K	640 Lm	55 Lm/W	700 mA	No Dim	45°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.40.PU-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	Push	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.27-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	No Dim	15°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.27.D1-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	1.10v	15°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.27.PU-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	Push	15°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.30-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	No Dim	15°	143×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.40.PU-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	Push	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.27-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	No Dim	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.27.D1-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	1.10v	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.27.PC-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	PHASE CUT	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.30.PC-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	PHASE CUT	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.30.PU-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	Push	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.40.PU-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	Push	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.30.PC-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	PHASE CUT	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.30.PU-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	Push	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.40-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	No Dim	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.40.D1-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	1.10v	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.30-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	No Dim	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.30.D1-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	1.10v	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.30.PU-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	Push	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.27.PC-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	PHASE CUT	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.30-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	No Dim	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.30.D1-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	1.10v	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.40-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	No Dim	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.27-3	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	No Dim	15°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.27-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	No Dim	45°	143×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.27.D1-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	1.10v	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.27.PU-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	Push	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.30.D1-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	1.10v	45°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.27-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	No Dim	15°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.27.D1-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	1.10v	15°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.27.PU-3	137×35 mm	Black-Black	10W	3000K	640 Lm	55 Lm/W	700 mA	Push	15°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.30-3	137×35 mm	Black-Black	10W	3000K	640 Lm	55 Lm/W	700 mA	No Dim	15°	143×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.30.PC-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	PHASE CUT	30°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.27-3	137×35 mm	Black-Black	10W	3000K	640 Lm	55 Lm/W	700 mA	No Dim	30°	143×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.30-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	No Dim	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.30.PU-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	Push	15°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.40.D1-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	1.10v	15°	143×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.30.PC-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	PHASE CUT	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.27.PU-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	Push	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.27-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	No Dim	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.27.D1-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	1.10v	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.27.PC-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	PHASE CUT	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.40.PC-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	PHASE CUT	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.40.PC-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	PHASE CUT	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.27.D1-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	1.10v	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.40-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	No Dim	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.40.D1-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	1.10v	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.27-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	No Dim	45°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.30.D1-3	137×35 mm	Black-Black	10W	3000K	640 Lm	55 Lm/W	700 mA	1.10v	15°	143×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.40.D1-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	1.10v	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.27-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	No Dim	45°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.27.PU-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	Push	45°	143×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.30.PC-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	PHASE CUT	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.30.D1-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	1.10v	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.30.PU-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	Push	30°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.27.D1-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	1.10v	45°	143×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.40.PC-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	PHASE CUT	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.27.PU-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	Push	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.30.D1-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	1.10v	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.30-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	No Dim	45°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.40.PU-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	Push	15°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.30.ST.9.40.D1-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	1.10v	30°	143×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.27.PC-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	PHASE CUT	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.40-2	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	No Dim	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.27.PC-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	PHASE CUT	45°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.30.PU-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	Push	15°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.30.D1-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	1.10v	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.27.D1-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	1.10v	45°	143×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.27.D1-3	270×35 mm	Black-White	20 W	2700K	1250 Lm	63 Lm/W	600 mA	1.10v	15°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.15.ST.9.27.PU-2	270×35 mm	Black-White	20 W	3000K	1280 Lm	64 Lm/W	600 mA	Push	15°	275×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.15.ST.9.40-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	No Dim	15°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.40.D1-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	1.10v	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.40.PU-3	137×35 mm	Black-White	10W	2700K	635 Lm	55 Lm/W	700 mA	Push	15°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.30.ST.9.27.PU-3	137×35 mm	Black-Black	10W	4000K	660 Lm	57 Lm/W	700 mA	Push	30°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.30.D1-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	1.10v	15°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.45.ST.9.40-3	137×35 mm	Black-White	10W	3000K	640 Lm	55 Lm/W	700 mA	No Dim	45°	143×70 mm	Download Data Sheet
K51300.02.TR.BK-BK.45.ST.9.30-3	137×35 mm	Black-Black	10W	2700K	635 Lm	55 Lm/W	700 mA	No Dim	45°	143×70 mm	Download Data Sheet
K51300.02.TR.WH-BK.15.ST.9.40-3	137×35 mm	Black-White	10W	4000K	660 Lm	57 Lm/W	700 mA	No Dim	15°	143×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.15.ST.9.30-3	270×35 mm	Black-Black	20 W	3000K	1280 Lm	64 Lm/W	600 mA	No Dim	15°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.27.PU-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	Push	30°	275×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.15.ST.9.27-3	95×35 mm	Black-Black	6 W	2700K	385 Lm	55 Lm/W	700 mA	No Dim	15°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.15.ST.9.27.PU-3	95×35 mm	Black-Black	6 W	2700K	385 Lm	55 Lm/W	700 mA	Push	15°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.15.ST.9.30-3	95×35 mm	Black-Black	6 W	3000K	385 Lm	55 Lm/W	700 mA	No Dim	15°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.15.ST.9.30.PU-3	95×35 mm	Black-Black	6 W	3000K	385 Lm	55 Lm/W	700 mA	Push	15°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.15.ST.9.40-3	95×35 mm	Black-Black	6 W	4000K	395 Lm	58 Lm/W	700 mA	No Dim	15°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.15.ST.9.40.PU-3	95×35 mm	Black-Black	6 W	4000K	395 Lm	58 Lm/W	700 mA	Push	15°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.30.ST.9.27-3	95×35 mm	Black-Black	6 W	2700K	385 Lm	55 Lm/W	700 mA	No Dim	30°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.30.ST.9.27.PU-3	95×35 mm	Black-Black	6 W	2700K	385 Lm	55 Lm/W	700 mA	Push	30°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.30.ST.9.30-3	95×35 mm	Black-Black	6 W	3000K	385 Lm	55 Lm/W	700 mA	No Dim	30°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.30.ST.9.30.PU-3	95×35 mm	Black-Black	6 W	3000K	385 Lm	55 Lm/W	700 mA	Push	30°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.30.ST.9.40-3	95×35 mm	Black-Black	6 W	4000K	395 Lm	58 Lm/W	700 mA	No Dim	30°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.30.ST.9.40.PU-3	95×35 mm	Black-Black	6 W	4000K	395 Lm	58 Lm/W	700 mA	Push	30°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.45.ST.9.27-3	95×35 mm	Black-Black	6 W	2700K	385 Lm	55 Lm/W	700 mA	No Dim	45°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.45.ST.9.27.PU-3	95×35 mm	Black-Black	6 W	2700K	385 Lm	55 Lm/W	700 mA	Push	45°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.45.ST.9.30-3	95×35 mm	Black-Black	6 W	3000K	385 Lm	55 Lm/W	700 mA	No Dim	45°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.45.ST.9.30.PU-3	95×35 mm	Black-Black	6 W	3000K	385 Lm	55 Lm/W	700 mA	Push	45°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.45.ST.9.40-3	95×35 mm	Black-Black	6 W	4000K	395 Lm	58 Lm/W	700 mA	No Dim	45°	100×70 mm	Download Data Sheet
K51300.01.TR.BK-BK.45.ST.9.40.PU-3	95×35 mm	Black-Black	6 W	4000K	395 Lm	58 Lm/W	700 mA	Push	45°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.15.ST.9.27-3	95×35 mm	Black-White	6 W	2700K	385 Lm	55 Lm/W	700 mA	No Dim	15°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.15.ST.9.27.PU-3	95×35 mm	Black-White	6 W	2700K	385 Lm	55 Lm/W	700 mA	Push	15°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.15.ST.9.30-3	95×35 mm	Black-White	6 W	3000K	385 Lm	55 Lm/W	700 mA	No Dim	15°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.15.ST.9.30.PU-3	95×35 mm	Black-White	6 W	3000K	385 Lm	55 Lm/W	700 mA	Push	15°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.15.ST.9.40-3	95×35 mm	Black-White	6 W	4000K	395 Lm	58 Lm/W	700 mA	No Dim	15°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.15.ST.9.40.PU-3	95×35 mm	Black-White	6 W	4000K	395 Lm	58 Lm/W	700 mA	Push	15°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.30.ST.9.27-3	95×35 mm	Black-White	6 W	2700K	385 Lm	55 Lm/W	700 mA	No Dim	30°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.30.ST.9.27.PU-3	95×35 mm	Black-White	6 W	2700K	385 Lm	55 Lm/W	700 mA	Push	30°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.30.ST.9.30-3	95×35 mm	Black-White	6 W	3000K	385 Lm	55 Lm/W	700 mA	No Dim	30°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.30.ST.9.30.PU-3	95×35 mm	Black-White	6 W	3000K	385 Lm	55 Lm/W	700 mA	Push	30°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.30.ST.9.40-3	95×35 mm	Black-White	6 W	4000K	395 Lm	58 Lm/W	700 mA	No Dim	30°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.30.ST.9.40.PU-3	95×35 mm	Black-White	6 W	4000K	395 Lm	58 Lm/W	700 mA	Push	30°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.45.ST.9.27-3	95×35 mm	Black-White	6 W	2700K	385 Lm	55 Lm/W	700 mA	No Dim	45°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.45.ST.9.27.PU-3	95×35 mm	Black-White	6 W	2700K	385 Lm	55 Lm/W	700 mA	Push	45°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.45.ST.9.30-3	95×35 mm	Black-White	6 W	3000K	385 Lm	55 Lm/W	700 mA	No Dim	45°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.45.ST.9.30.PU-3	95×35 mm	Black-White	6 W	3000K	385 Lm	55 Lm/W	700 mA	Push	45°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.45.ST.9.40-3	95×35 mm	Black-White	6 W	4000K	395 Lm	58 Lm/W	700 mA	No Dim	45°	100×70 mm	Download Data Sheet
K51300.01.TR.WH-BK.45.ST.9.40.PU-3	95×35 mm	Black-White	6 W	4000K	395 Lm	58 Lm/W	700 mA	Push	45°	100×70 mm	Download Data Sheet

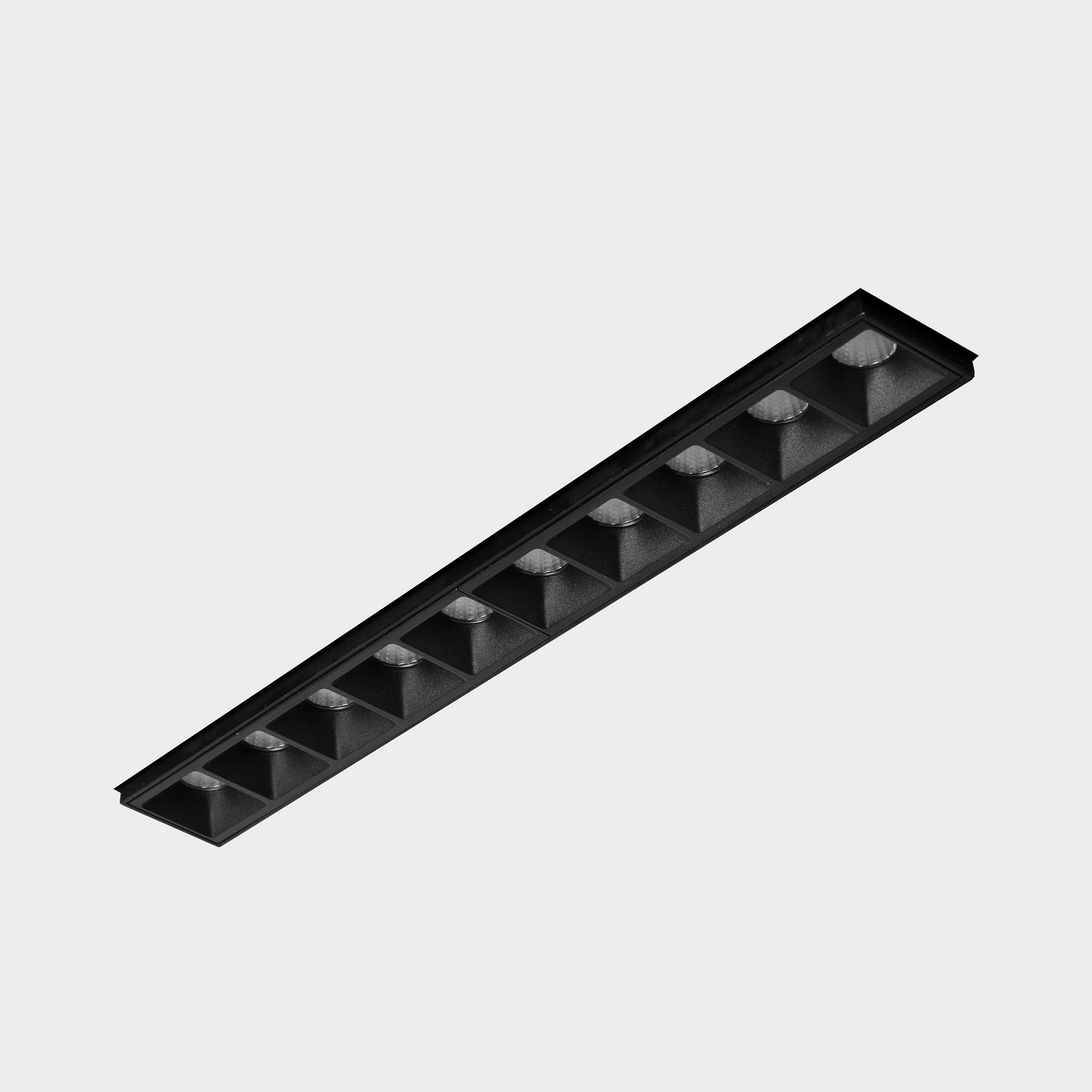

K51300.03.TR.BK-BK.30.ST.9.40-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	No Dim	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.40.D1-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	1.10v	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.30.ST.9.40.PU-3	270×35 mm	Black-Black	20 W	2700K	1250 Lm	63 Lm/W	600 mA	Push	30°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.40.PC-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	PHASE CUT	45°	275×70 mm	Download Data Sheet
K51300.03.TR.BK-BK.45.ST.9.40.PU-3	270×35 mm	Black-Black	20 W	4000K	1470 Lm	73 Lm/W	600 mA	Push	45°	275×70 mm	Download Data Sheet

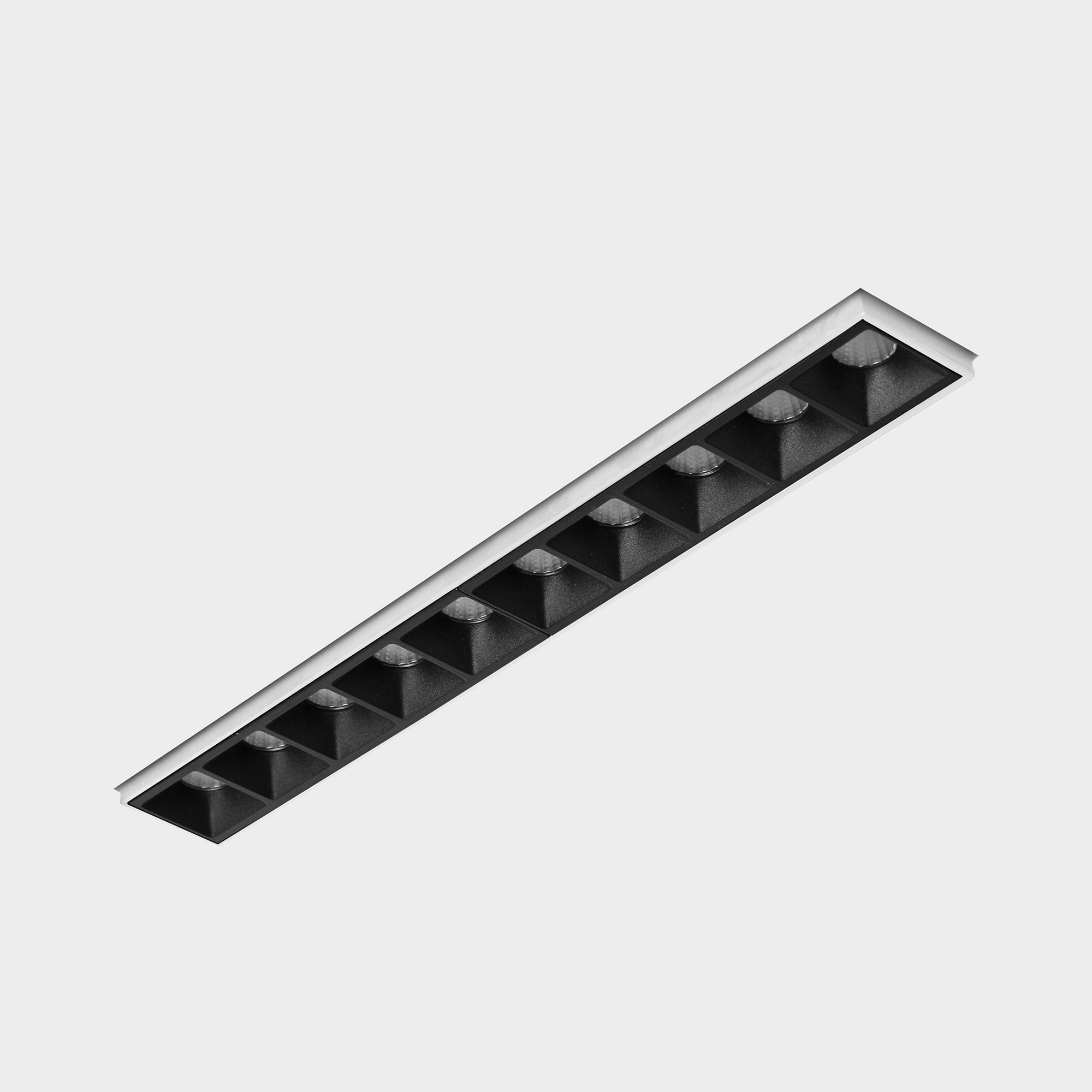

K51300.03.TR.WH-BK.30.ST.9.40-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	No Dim	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.30.ST.9.40.D1-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	1.10v	30°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.40.PC-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	PHASE CUT	45°	275×70 mm	Download Data Sheet
K51300.03.TR.WH-BK.45.ST.9.40.PU-2	270×35 mm	Black-White	20 W	4000K	1470 Lm	73 Lm/W	600 mA	Push	45°	275×70 mm	Download Data Sheet

luxo aura

nses

Additional information

Configurator

Products

About us

Catalogue

light is life

Contact
