disc sq

K51703.RF
INSTRUCCIONES
FOTOMETRÍA
CERTIFICADO DE CONFORMIDAD

Información adicional

DETALLES GENERALES
Instalación: Recessed with Frame
Color ext-int: Blanco | Negro
Dirección de la luz: Fijo
Int-ext estanqueidad: IP43
Material: Aluminio
Resistencia mecánica: IK03
Uso: Interior
Garantía: 3 años
DETALLES ELÉCTRICOS
Fuente de luz: LED
Potencia: 8W | 12W | 20W | 24W
Temperatura de color: 3000K | 4000K
Flujo lumínico: 480 Lm | 490 Lm | 1040 Lm | 1060 Lm | 1750 Lm | 1800 Lm | 2300 Lm | 2350 Lm
Eficiencia lumínica: 62 Lm/W | 63 Lm/W | 83 Lm/W | 85 Lm/W | 90 Lm/W | 92 Lm/W | 98 Lm/W | 100 Lm/W
Dimable: 1.10v | DALI | PHASE CUT | PUSH | Sin regulación
Driver: Remoto
Clase de seguridad: II
Índice de reproducción cromática: CRI>80
Tensión: 220-240 V
Frecuencia: 50-60 Hz
Corriente: 300 mA | 350 mA | 500 mA | 600 mA
Vida util: 35.000h
DIMENSIONES GENERALES
Dimensión: 120×120 mm | 172×172 mm | 225×225 mm | 300×300 mm
Agujero de corte: 103X103 mm | 155×155 mm | 205X205 mm | 280×280 mm
Altura: h 20 mm
Distancia min falso techo: 20 mm

*medidas .01 no regulación en phase cut

Configurador

ImageReferenciaDimensiónAgujero de corteColor ext-intPotenciaTemperatura de colorFlujo lumínicoEficiencia lumínicaCorrienteDimableFicha técnica
K51703.04.RF.WH-WH.OP.ST.8.40.PU300x300 mm280x280 mmBlanco24W4000K2350 Lm100 Lm/W600 mAPUSH Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.30120x120 mm103X103 mmNegro8W3000K480 Lm62 Lm/W350 mASin regulación Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.30.D1120x120 mm103X103 mmNegro8W3000K480 Lm62 Lm/W350 mA1.10v Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.30.DA120x120 mm103X103 mmNegro8W3000K480 Lm62 Lm/W350 mADALI Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.30.PU120x120 mm103X103 mmNegro8W3000K480 Lm62 Lm/W350 mAPUSH Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.40120x120 mm103X103 mmNegro8W4000K490 Lm63 Lm/W350 mASin regulación Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.40.D1120x120 mm103X103 mmNegro8W4000K490 Lm63 Lm/W350 mA1.10v Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.40.DA120x120 mm103X103 mmNegro8W4000K490 Lm63 Lm/W350 mADALI Export as PDF
K51703.01.RF.BK-BK.OP.ST.8.40.PU120x120 mm103X103 mmNegro8W4000K490 Lm63 Lm/W350 mAPUSH Export as PDF

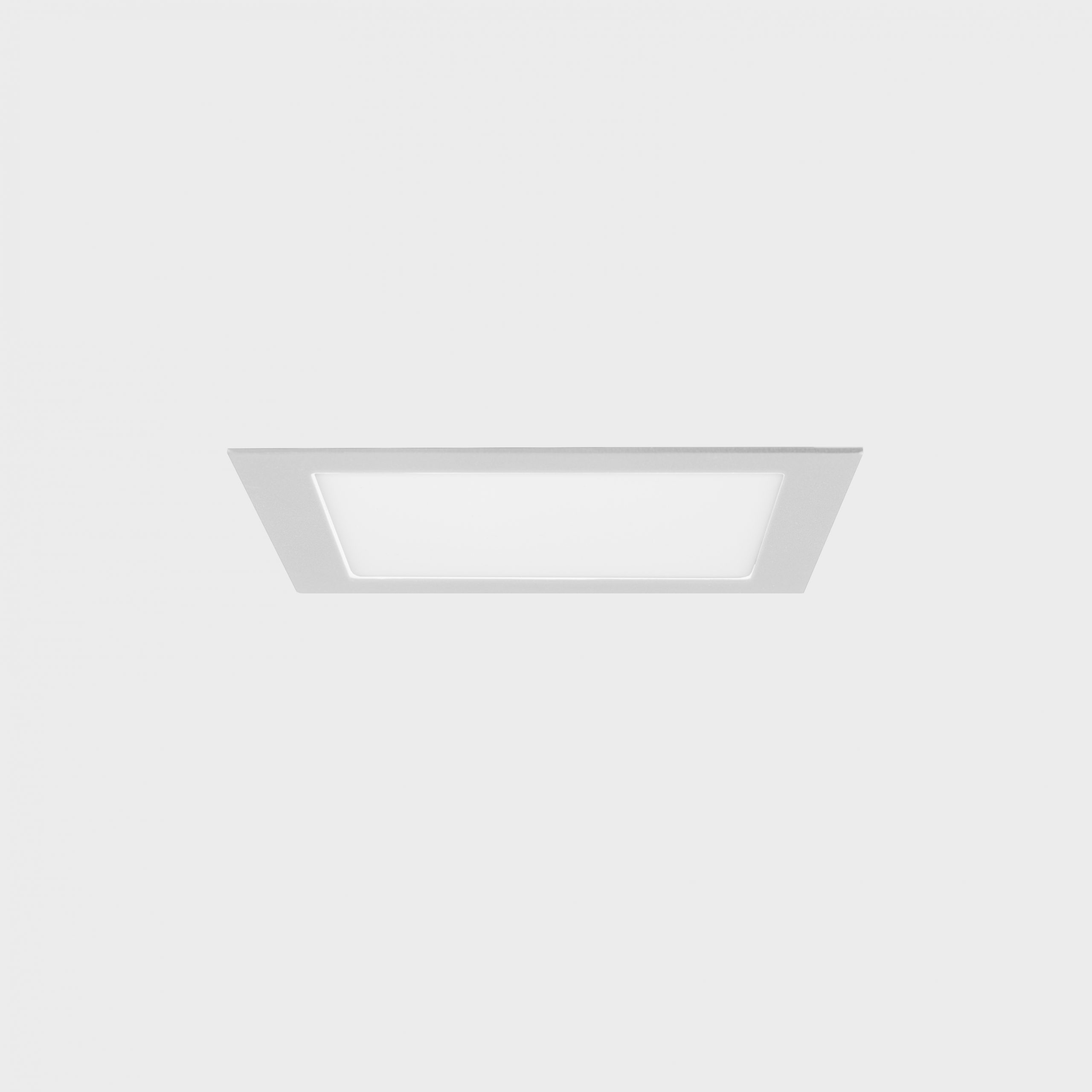

K51703.01.RF.WH-WH.OP.ST.8.30120x120 mm103X103 mmBlanco8W3000K480 Lm62 Lm/W350 mASin regulación Export as PDF
K51703.01.RF.WH-WH.OP.ST.8.30.D1120x120 mm103X103 mmBlanco8W3000K480 Lm62 Lm/W350 mA1.10v Export as PDF
K51703.01.RF.WH-WH.OP.ST.8.30.DA120x120 mm103X103 mmBlanco8W3000K480 Lm62 Lm/W350 mADALI Export as PDF
K51703.01.RF.WH-WH.OP.ST.8.30.PU120x120 mm103X103 mmBlanco8W3000K480 Lm62 Lm/W350 mAPUSH Export as PDF
K51703.01.RF.WH-WH.OP.ST.8.40120x120 mm103X103 mmBlanco8W4000K490 Lm63 Lm/W350 mASin regulación Export as PDF
K51703.01.RF.WH-WH.OP.ST.8.40.D1120x120 mm103X103 mmBlanco8W4000K490 Lm63 Lm/W350 mA1.10v Export as PDF
K51703.01.RF.WH-WH.OP.ST.8.40.DA120x120 mm103X103 mmBlanco8W4000K490 Lm63 Lm/W350 mADALI Export as PDF
K51703.01.RF.WH-WH.OP.ST.8.40.PU120x120 mm103X103 mmBlanco8W4000K490 Lm63 Lm/W350 mAPUSH Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.30172x172 mm155x155 mmNegro12W3000K1040 Lm83 Lm/W300 mASin regulación Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.30.D1172x172 mm155x155 mmNegro12W3000K1040 Lm83 Lm/W300 mA1.10v Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.30.DA172x172 mm155x155 mmNegro12W3000K1040 Lm83 Lm/W300 mADALI Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.30.PC172x172 mm155x155 mmNegro12W3000K1040 Lm83 Lm/W300 mAPHASE CUT Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.30.PU172x172 mm155x155 mmNegro12W3000K1040 Lm83 Lm/W300 mAPUSH Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.40172x172 mm155x155 mmNegro12W4000K1060 Lm85 Lm/W300 mASin regulación Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.40.D1172x172 mm155x155 mmNegro12W4000K1060 Lm85 Lm/W300 mA1.10v Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.40.DA172x172 mm155x155 mmNegro12W4000K1060 Lm85 Lm/W300 mADALI Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.40.PC172x172 mm155x155 mmNegro12W4000K1060 Lm85 Lm/W300 mAPHASE CUT Export as PDF
K51703.02.RF.BK-BK.OP.ST.8.40.PU172x172 mm155x155 mmNegro12W4000K1060 Lm85 Lm/W300 mAPUSH Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.30172x172 mm155x155 mmBlanco12W3000K1040 Lm83 Lm/W300 mASin regulación Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.30.D1172x172 mm155x155 mmBlanco12W3000K1040 Lm83 Lm/W300 mA1.10v Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.30.DA172x172 mm155x155 mmBlanco12W3000K1040 Lm83 Lm/W300 mADALI Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.30.PC172x172 mm155x155 mmBlanco12W3000K1040 Lm83 Lm/W300 mAPHASE CUT Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.30.PU172x172 mm155x155 mmBlanco12W3000K1040 Lm83 Lm/W300 mAPUSH Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.40172x172 mm155x155 mmBlanco12W4000K1060 Lm85 Lm/W300 mASin regulación Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.40.D1172x172 mm155x155 mmBlanco12W4000K1060 Lm85 Lm/W300 mA1.10v Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.40.DA172x172 mm155x155 mmBlanco12W4000K1060 Lm85 Lm/W300 mADALI Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.40.PC172x172 mm155x155 mmBlanco12W4000K1060 Lm85 Lm/W300 mAPHASE CUT Export as PDF
K51703.02.RF.WH-WH.OP.ST.8.40.PU172x172 mm155x155 mmBlanco12W4000K1060 Lm85 Lm/W300 mAPUSH Export as PDF

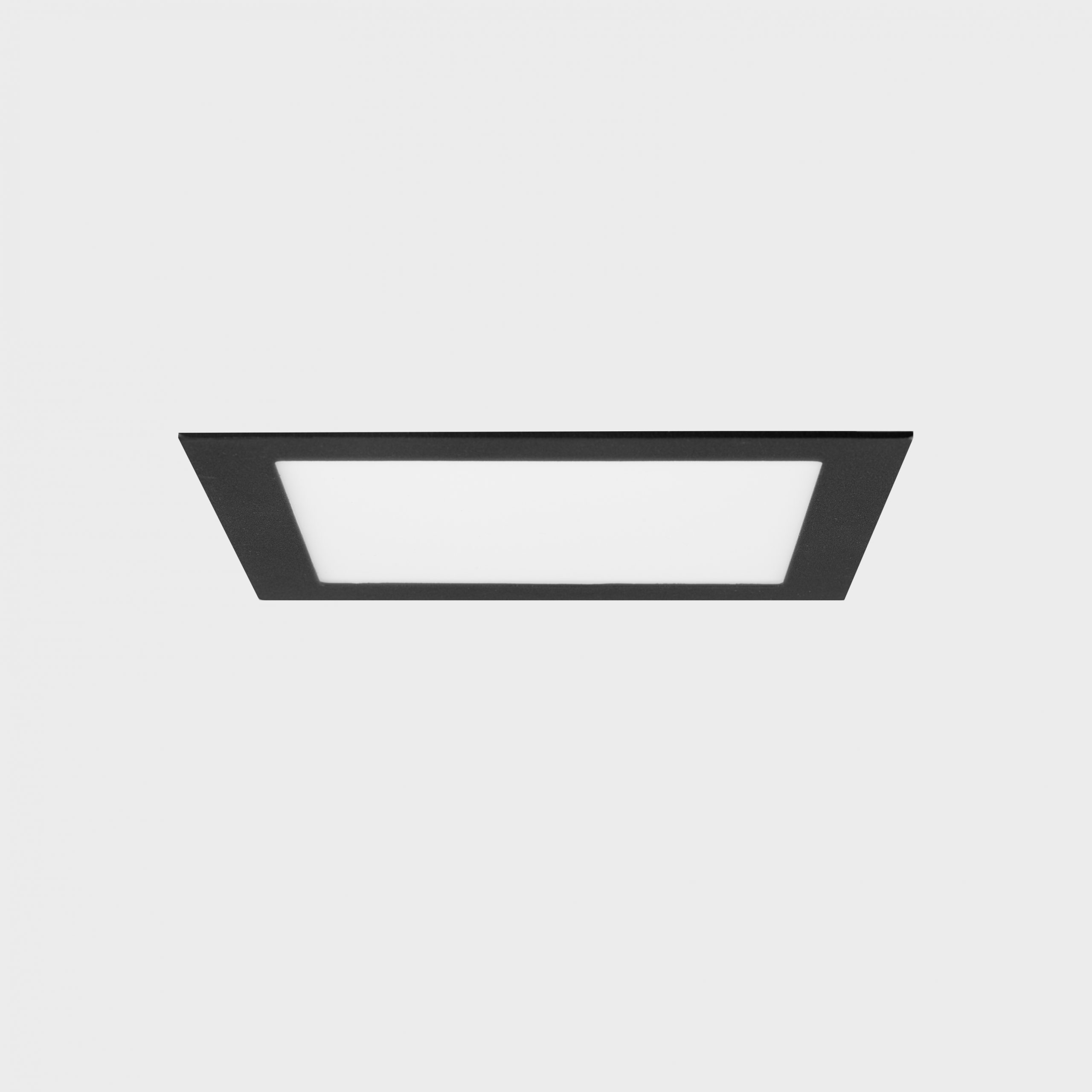

K51703.03.RF.BK-BK.OP.ST.8.30225x225 mm205X205 mmNegro20W3000K1750 Lm90 Lm/W500 mASin regulación Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.30.D1225x225 mm205X205 mmNegro20W3000K1750 Lm90 Lm/W500 mA1.10v Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.30.DA225x225 mm205X205 mmNegro20W3000K1750 Lm90 Lm/W500 mADALI Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.30.PC225x225 mm205X205 mmNegro20W3000K1750 Lm90 Lm/W500 mAPHASE CUT Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.30.PU225x225 mm205X205 mmNegro20W3000K1750 Lm90 Lm/W500 mAPUSH Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.40225x225 mm205X205 mmNegro20W4000K1800 Lm92 Lm/W500 mASin regulación Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.40.D1225x225 mm205X205 mmNegro20W4000K1800 Lm92 Lm/W500 mA1.10v Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.40.DA225x225 mm205X205 mmNegro20W4000K1800 Lm92 Lm/W500 mADALI Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.40.PC225x225 mm205X205 mmNegro20W4000K1800 Lm92 Lm/W500 mAPHASE CUT Export as PDF
K51703.03.RF.BK-BK.OP.ST.8.40.PU225x225 mm205X205 mmNegro20W4000K1800 Lm92 Lm/W500 mAPUSH Export as PDF

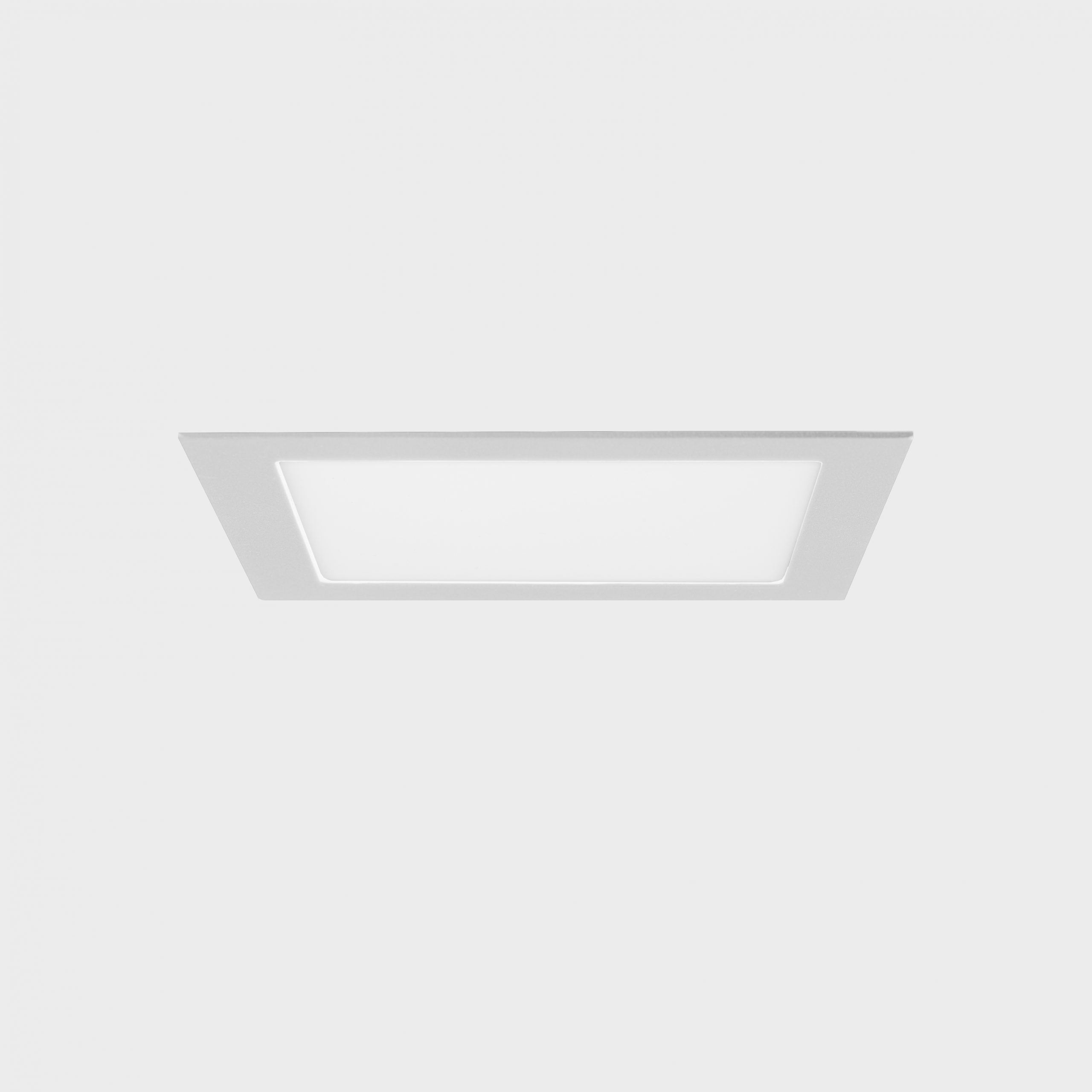

K51703.03.RF.WH-WH.OP.ST.8.30225x225 mm205X205 mmBlanco20W3000K1750 Lm90 Lm/W500 mASin regulación Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.30.D1225x225 mm205X205 mmBlanco20W3000K1750 Lm90 Lm/W500 mA1.10v Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.30.DA225x225 mm205X205 mmBlanco20W3000K1750 Lm90 Lm/W500 mADALI Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.30.PC225x225 mm205X205 mmBlanco20W3000K1750 Lm90 Lm/W500 mAPHASE CUT Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.30.PU225x225 mm205X205 mmBlanco20W3000K1750 Lm90 Lm/W500 mAPUSH Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.40225x225 mm205X205 mmBlanco20W4000K1800 Lm92 Lm/W500 mASin regulación Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.40.D1225x225 mm205X205 mmBlanco20W4000K1800 Lm92 Lm/W500 mA1.10v Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.40.DA225x225 mm205X205 mmBlanco20W4000K1800 Lm92 Lm/W500 mADALI Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.40.PC225x225 mm205X205 mmBlanco20W4000K1800 Lm92 Lm/W500 mAPHASE CUT Export as PDF
K51703.03.RF.WH-WH.OP.ST.8.40.PU225x225 mm205X205 mmBlanco20W4000K1800 Lm92 Lm/W500 mAPUSH Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.30300x300 mm280x280 mmNegro24W3000K2300 Lm98 Lm/W600 mASin regulación Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.30.D1300x300 mm280x280 mmNegro24W3000K2300 Lm98 Lm/W600 mA1.10v Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.30.DA300x300 mm280x280 mmNegro24W3000K2300 Lm98 Lm/W600 mADALI Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.30.PC300x300 mm280x280 mmNegro24W3000K2300 Lm98 Lm/W600 mAPHASE CUT Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.30.PU300x300 mm280x280 mmNegro24W3000K2300 Lm98 Lm/W600 mAPUSH Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.40300x300 mm280x280 mmNegro24W4000K2350 Lm100 Lm/W600 mASin regulación Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.40.D1300x300 mm280x280 mmNegro24W4000K2350 Lm100 Lm/W600 mA1.10v Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.40.DA300x300 mm280x280 mmNegro24W4000K2350 Lm100 Lm/W600 mADALI Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.40.PC300x300 mm280x280 mmNegro24W4000K2350 Lm100 Lm/W600 mAPHASE CUT Export as PDF
K51703.04.RF.BK-BK.OP.ST.8.40.PU300x300 mm280x280 mmNegro24W4000K2350 Lm100 Lm/W600 mAPUSH Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.30300x300 mm280x280 mmBlanco24W3000K2300 Lm98 Lm/W600 mASin regulación Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.30.D1300x300 mm280x280 mmBlanco24W3000K2300 Lm98 Lm/W600 mA1.10v Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.30.DA300x300 mm280x280 mmBlanco24W3000K2300 Lm98 Lm/W600 mADALI Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.30.PC300x300 mm280x280 mmBlanco24W3000K2300 Lm98 Lm/W600 mAPHASE CUT Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.30.PU300x300 mm280x280 mmBlanco24W3000K2300 Lm98 Lm/W600 mAPUSH Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.40300x300 mm280x280 mmBlanco24W4000K2350 Lm100 Lm/W600 mASin regulación Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.40.D1300x300 mm280x280 mmBlanco24W4000K2350 Lm100 Lm/W600 mA1.10v Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.40.DA300x300 mm280x280 mmBlanco4000K2350 Lm100 Lm/WDALI Export as PDF
K51703.04.RF.WH-WH.OP.ST.8.40.PC300x300 mm280x280 mmBlanco24W4000K2350 Lm100 Lm/W600 mAPHASE CUT Export as PDF
